Description

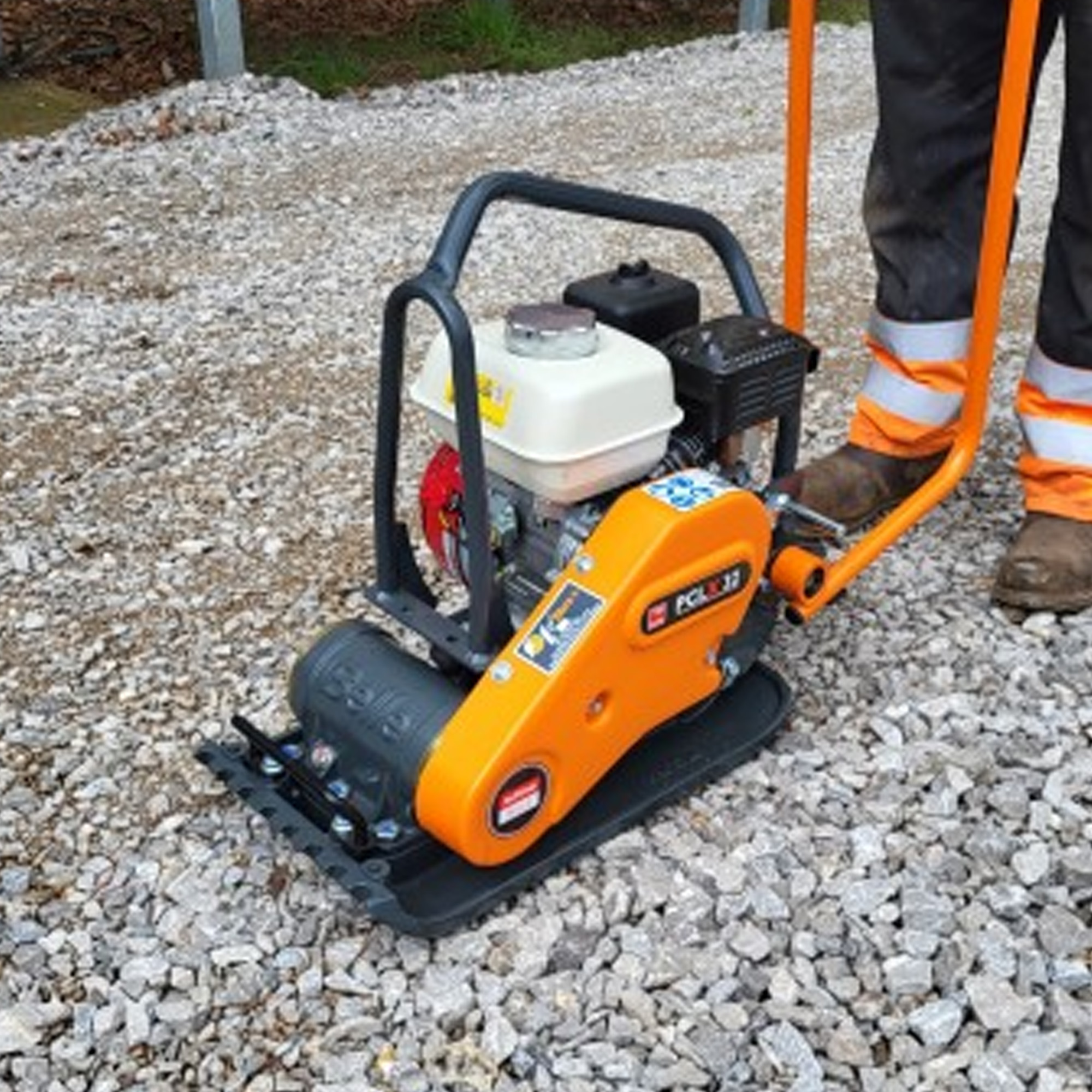

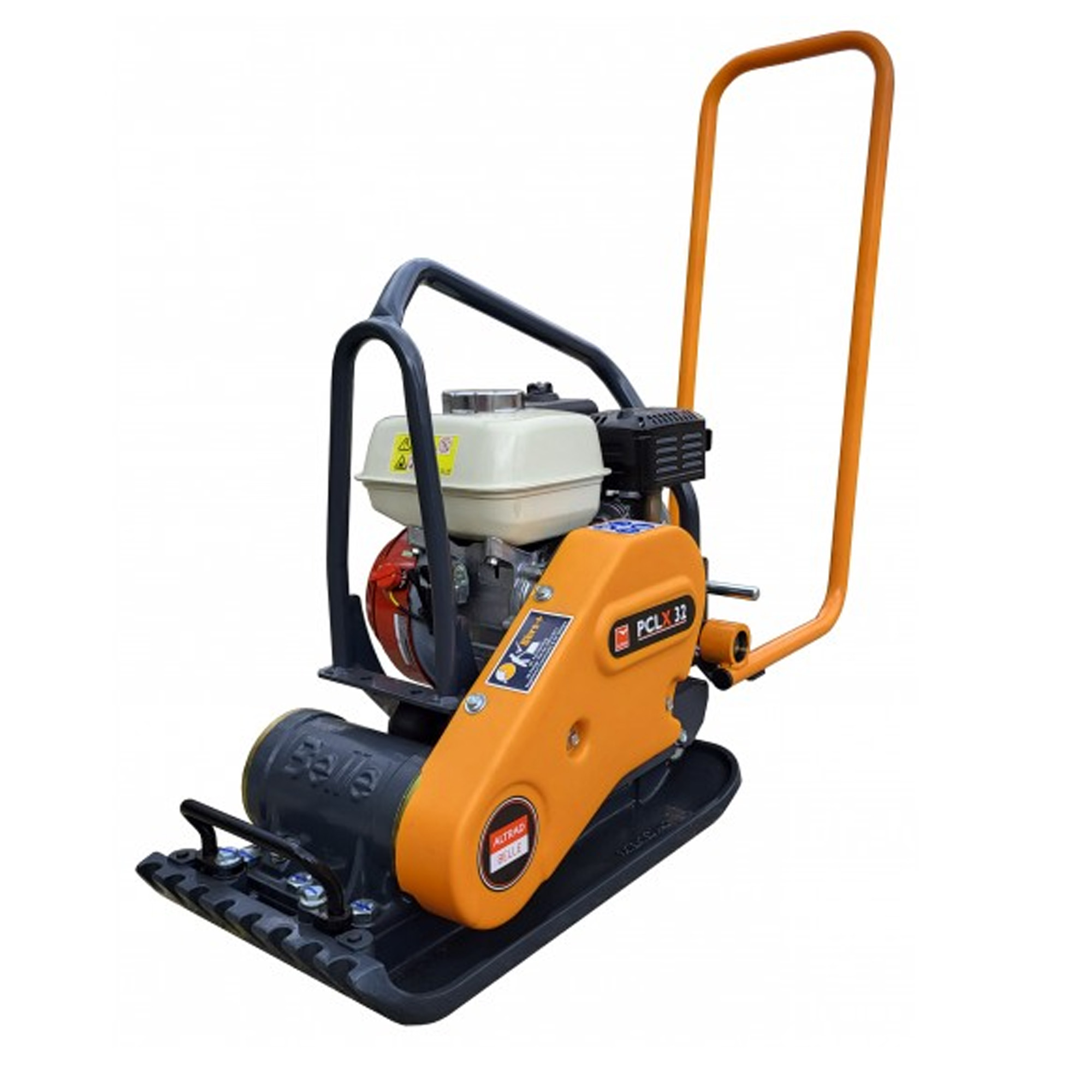

Professional compaction plates with low hand arm vibration and high performance compaction. The robust PCLX compaction plates are designed for contracting and rental usage.

• Low Hand-Arm Vibration design for longer safe usage times
• Powerful, reliable Honda GX120 and Loncin H135 petrol engine options
• High performance 13kN vibration unit gives excellent compaction force and travel speeds
• Tubular frame designed to protect vulnerable components
• Baseplate designed for optimised speed and manoeuvrability
• Lightweight yet durable for easy transport
• Fits in a standard car boot when the handle is folded
• Fitted with manual handling points
• Engineered to be robust and durable for rental and heavy contractor usage
• Easy to operate and control, the baseplate does not dig in when dragged backwards or turned
• Optional, removable 12-litre water tank features a quick-release design
• Optional wheel kit to aid on-site transportation available
• Optional paving pad for block paving applications available
• Customer colour options available

• Engine Power: 3.2 HP – 2.4 kW
• Static Pressure: 416kg/m2
• Centrifugal Force: 13kN
• Frequency: 101Hz
• Max. Travel Speed: 20m/min
• Dimensions: 320 x 950 x 935mm
• Vibration Level: 2.49m/sec2
• Weight: 64kg
