Description

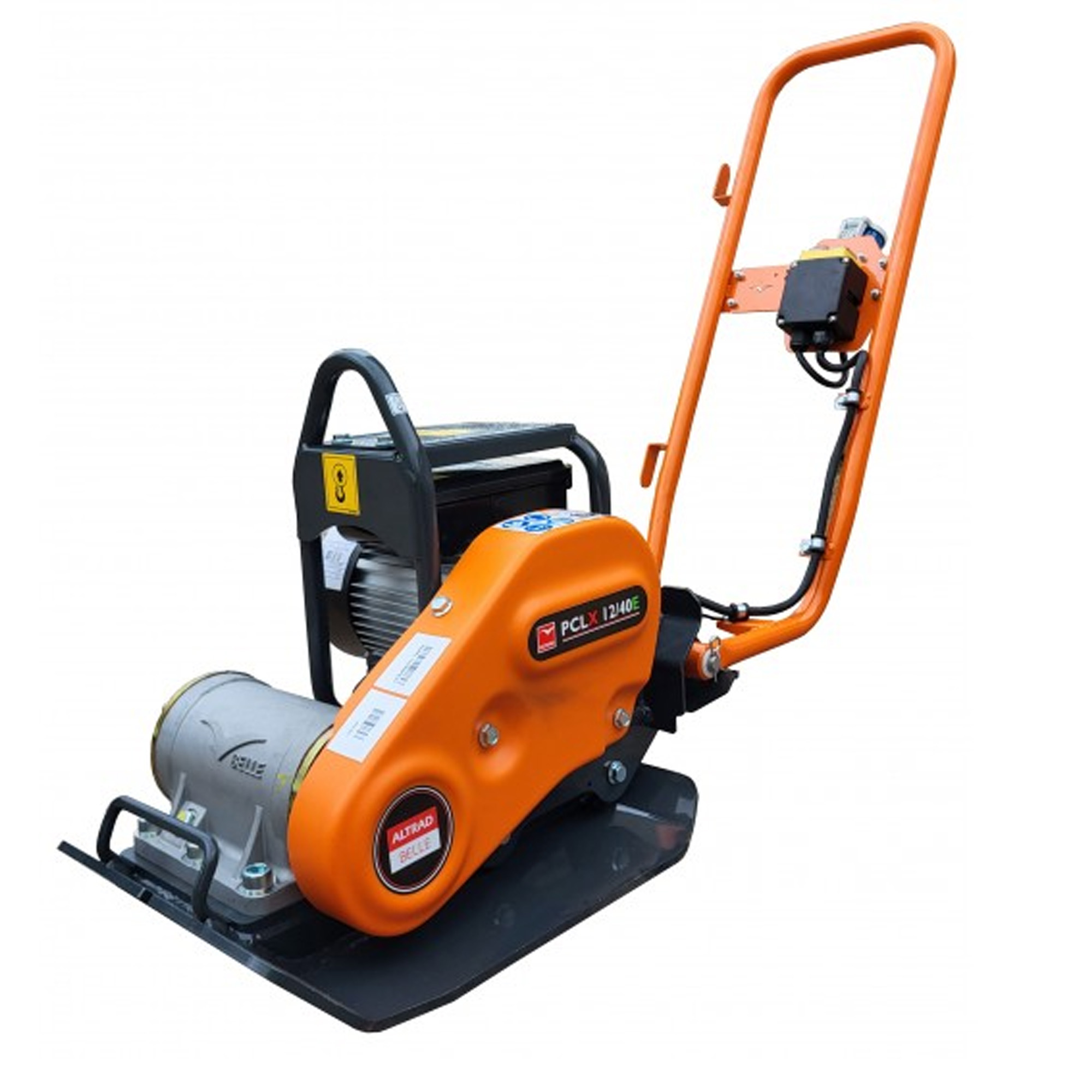

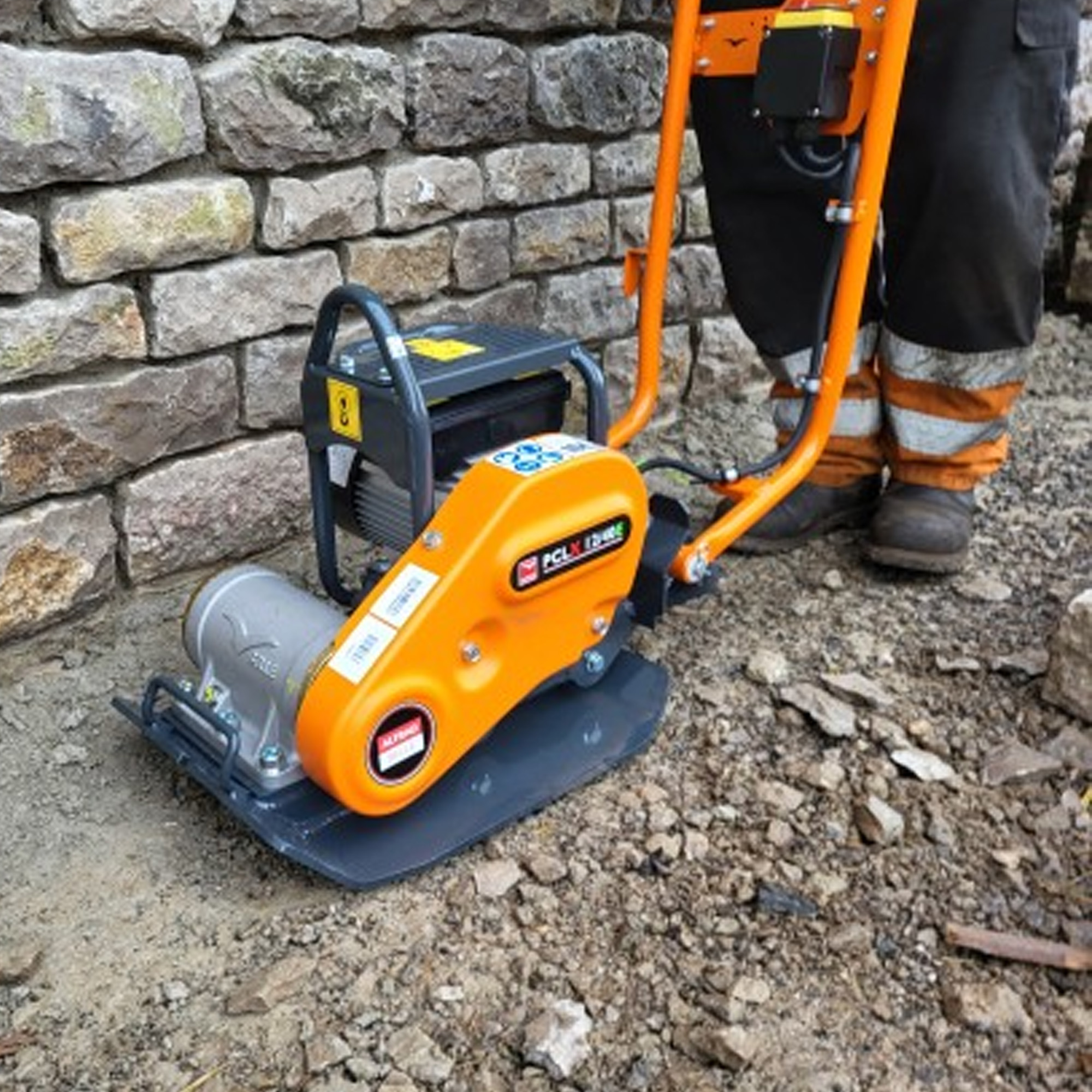

A lightweight, professional electric plate compactor with high performance and travel speed from the 12kN vibration unit. Designed with an environmentally friendly electric
motor for use indoors and poorly ventilated areas.

• High performance 12kN vibration unit for excellent travel speed
• High Compaction Force reduces operating times
• Environmentally friendly, 1.5kW zero emission Electric Motor for use indoors & in poorly ventilated areas
• Low HAV design allows longer, safe usage times
• Efficient Electric Motor is ideal for night time and urban usage
• Centrifugal Clutch for soft start & reduced current surge
• Professional 16amp power inlets for effective cable management
• Sealed oil-filled vibrator with top quality bearings for reliability and durability
• Front & rear manual handling points for easy 2-man lift
• Removable, ultra low folding operator’s handle for ease of transportation and storage
• 8mm thick long life base plate for optimum compaction and reliability
• Engineered to be robust and durable for rental and heavy contractor use
• No fuel or engine maintenance and higher return on investment
• Class 1 Earthed Appliance
• Integrated Motor protection guard
• Block Paving Pad option available

• Motor Power: 2.0 Hp – 1.5 kW
• Minimimum Transformer Size: 3.3 kVA
• Static Pressure: 388kg/m2
• Max. Gradient: 20°
• Centrifugal Force: 12kN
• Max. Travel Speed: 24m/min
• Vibration Level: 3.97m/sec2
• Weight: 50kg
