Description

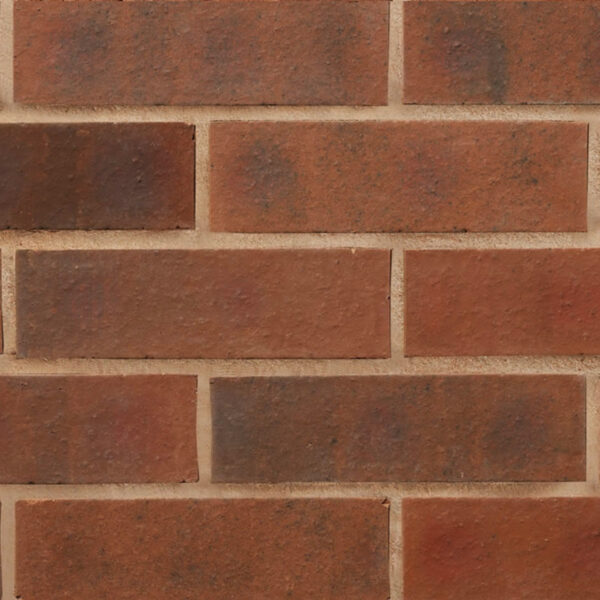

215mm x 102.5mm x 73mm Facing brick in reverse available from Carlton and widely used for contemporary brickwork in modern housing developments, restorations, refurbishment and conservation projects, complementing a vast array of architectural styles. This extruded wirecut brick is orange with a vertical darker bar marking,
it is smooth and offers exceptional technical specifications of T2, R1, F2, S2 and a compressive strength of 40N/mm2.

• Type: Extruded
• Facing Description: Wirecut Textured
• Dry Brick Weight (kg): 2.71kg
• Pack Quantity: 464

• Brick Dimensions (L x W x H mm): 215 x 102.5 x 73 mm
• Durability: F2
• Dim Tolerance Mean: T2
• Dim Tolerance Range: R1
• Gross Dry Density (kg/m³): 1500
• Gross Density Tolerance: D1
• Net Dry Density (kg/m³): 2100
• Net Density Tolerance: D1
• Compressive Strength (N/mm²): 40
• Compressive Strength Category: II
• Water Absorption: 10
• Thermal Conductivity (P = 90) (W/(m.K)): 0.69
• Soluble Salts: S2
• Thermal Resistance (P = 90) (m².K/W): 0.15
• Water Vapour Permeability: 50/100
• Void Percentage: 26 – 30
• Initial Rate of Water Absorption: 1.5
• Standard: BS EN 771-1
