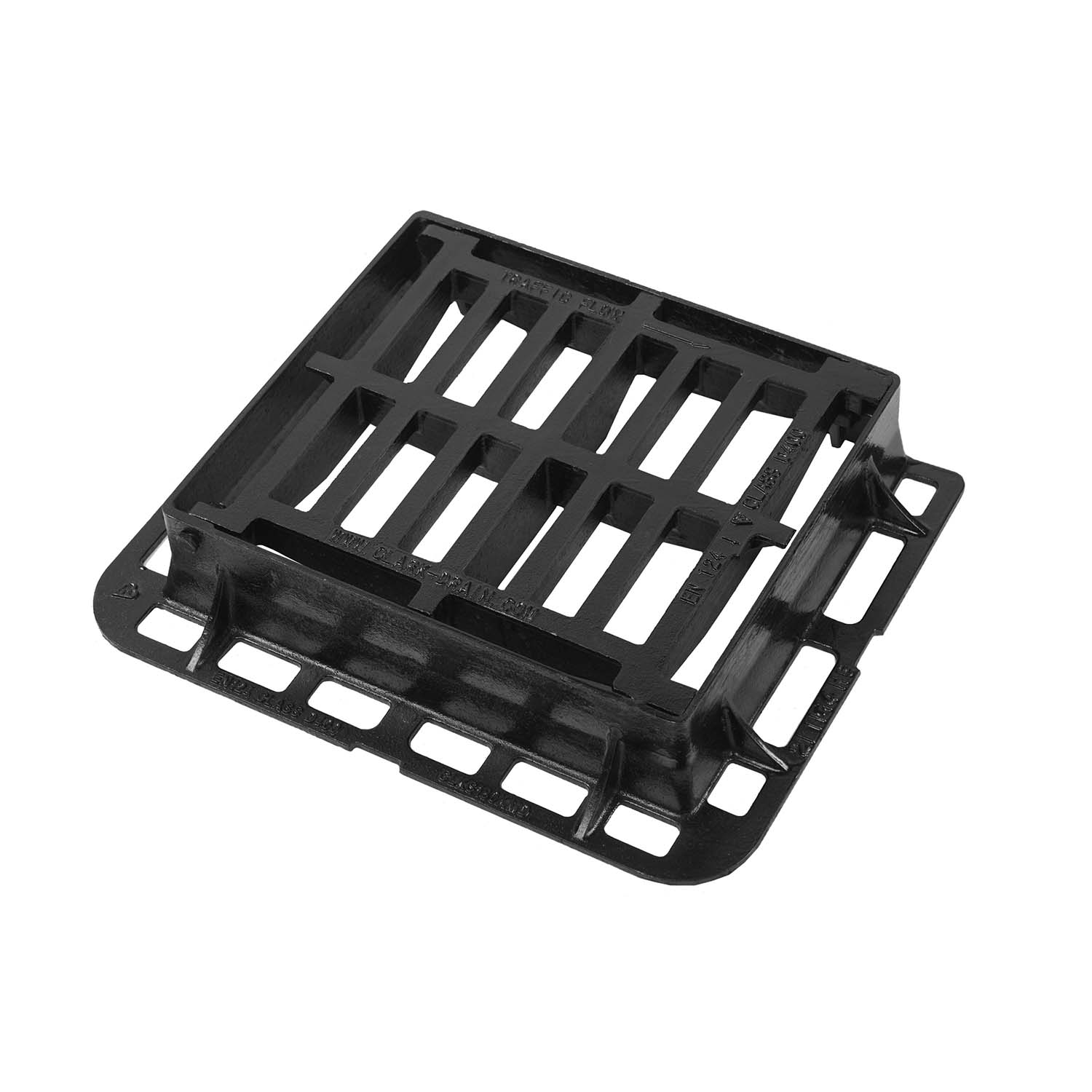

Description

• BSI Kitemark certified to BS EN124 2015
• Captive hinge design to deter thieves
• Suitable to fit standard 450mm diameter gully pots
• 3 Sided flange for installation against kerbs
• “Taper lock” Grating design to ensure non rocking
• Compliant to the design requirements of Highways Agency DMRB CD 534 for gully tops

• Application: Carriageway kerbside areas and commercial/industrial areas
• Accreditation: BS EN124-2:2015, HA102/00, HA104/09
• Gratings: Type S, Straight Bar, Captive Hinge , Non-Rock/li>
• Product Weight: 30kg
• Clear Opening: 430 x 370
• External Dimensions: 570 (L) x 459 (W) x 100 (D)
• Internal Dimensions: 430 (L) x 370 (W)
• Material: Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN 1563:2011 Temporary Bitumen based paint coating to BS 3416:1991
• Loading Rating: D400
• Waterway Area: 994cm2
• Frame Pressure Bearing Area (N/mm2):6.9
