Description

• Compliant to relevant clauses of BS EN13598-1:2010 and Sewers for Adoption, 7th Edition
• All-plastic non-rusting design
• Lightweight
• Supplied with joint seal
• Made from recycled material

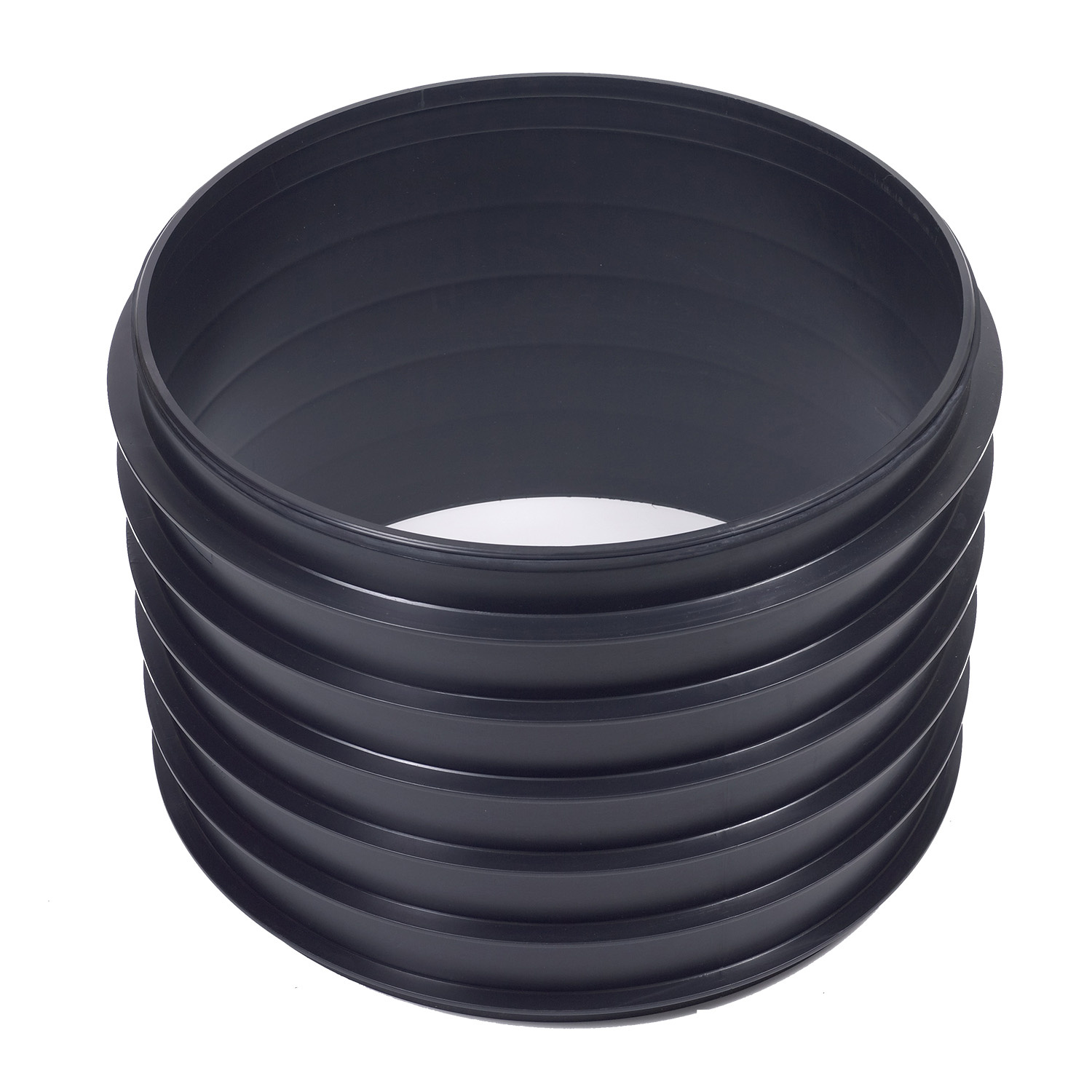

• Total depth can be up to 1.2 m using CD U455 risers and matching CD U453 chamber base
• 5-way design for system flexibility

• External Dimensions: 500 (W) x 340 (D)
• Product Weight: 3.5kg
• Overall Width: 350 Ø
• Overall Height: 340
• Rise Height: 300mm
• Material: Polypropylene (Grade AP9), EPDM Rubber
• Loading Rating: Up to B125 (12.5 tonnes) when used with appropriate risers and manhole cover and installed to Clark-Drain guidelines supplied with products)
