Description

Wall Thickness: 13mm

BS 7523:1991 Type A

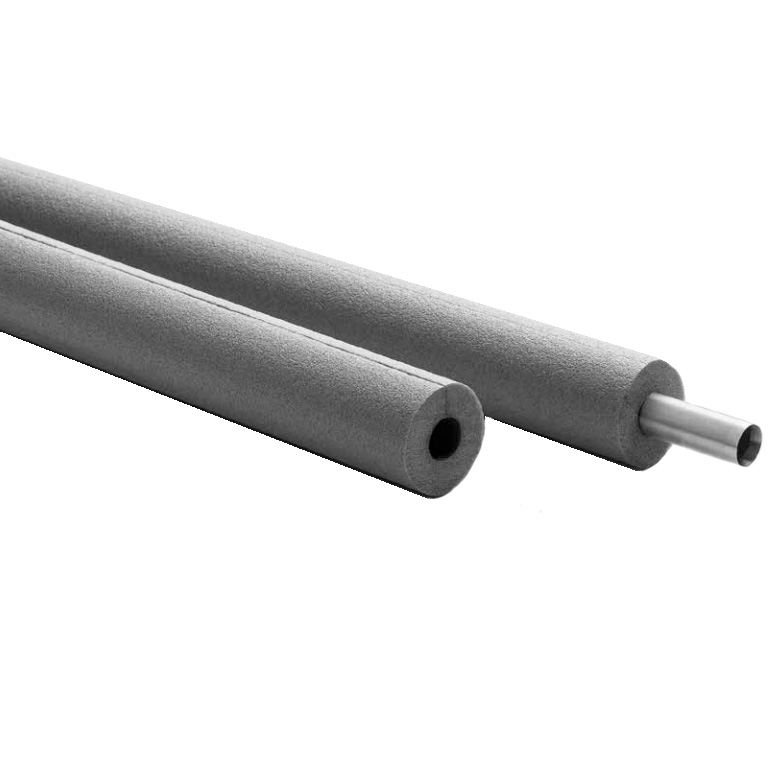

A flexible pipe insulation manufactured by extrusion of expanded polyethylene material.

• Polyethylene pipe insulation (Class E Fire Rating Combustible Material)
• Available in improved thermal conductivity (0.034 W/mK at Oc)
• Totally CFC & HCFC Free
• Global warming potential (GWP) specified by the ‘international panel on climate change’ requires a reading of less than 5. Climaflex has a reading of zero
• Improved thermal conductivity availability allows compliance with Water Byelaw 49 by utilising thinner wall thicknesses to ease application in confined areas
• Improved thermal conductivity grade approved by BSI Approved Product: exceeds the requirements of BS 7523:1991
• Ideal for thermal insulation of pipe work in domestic solutions
• Hygienic product: rot-proof, odourless and non-hydroscopic. Will not sustain vermin and will not encourage growth of fungi or mould
• Chemically neutral

• Mean density: 35kg/m3
• Temperature range: -50°C to +95°C
• Thermal conductivity: 0°C – 0.034 W/mK, 20°C – 0.036 W/mKM, 40°C – 0.039 W/mK : DIN 52613
• Fire classification: combustible material
• Ozone resistance: good
• Thermal transmittance U-value: 13mm 2.20 W/m2 K
• Resistance to oils and grease: good
• Meets requirements of BS 7523:1991: Type A preformed cellular polyethylene (PE)
• Materials for the thermal insulation of pipe work
• Satisfies building regulations section L1
• Conforms to the requirements of BSEN806 and BS 8558:2011
• 1977 specification for the use of thermal insulating materials
