Description

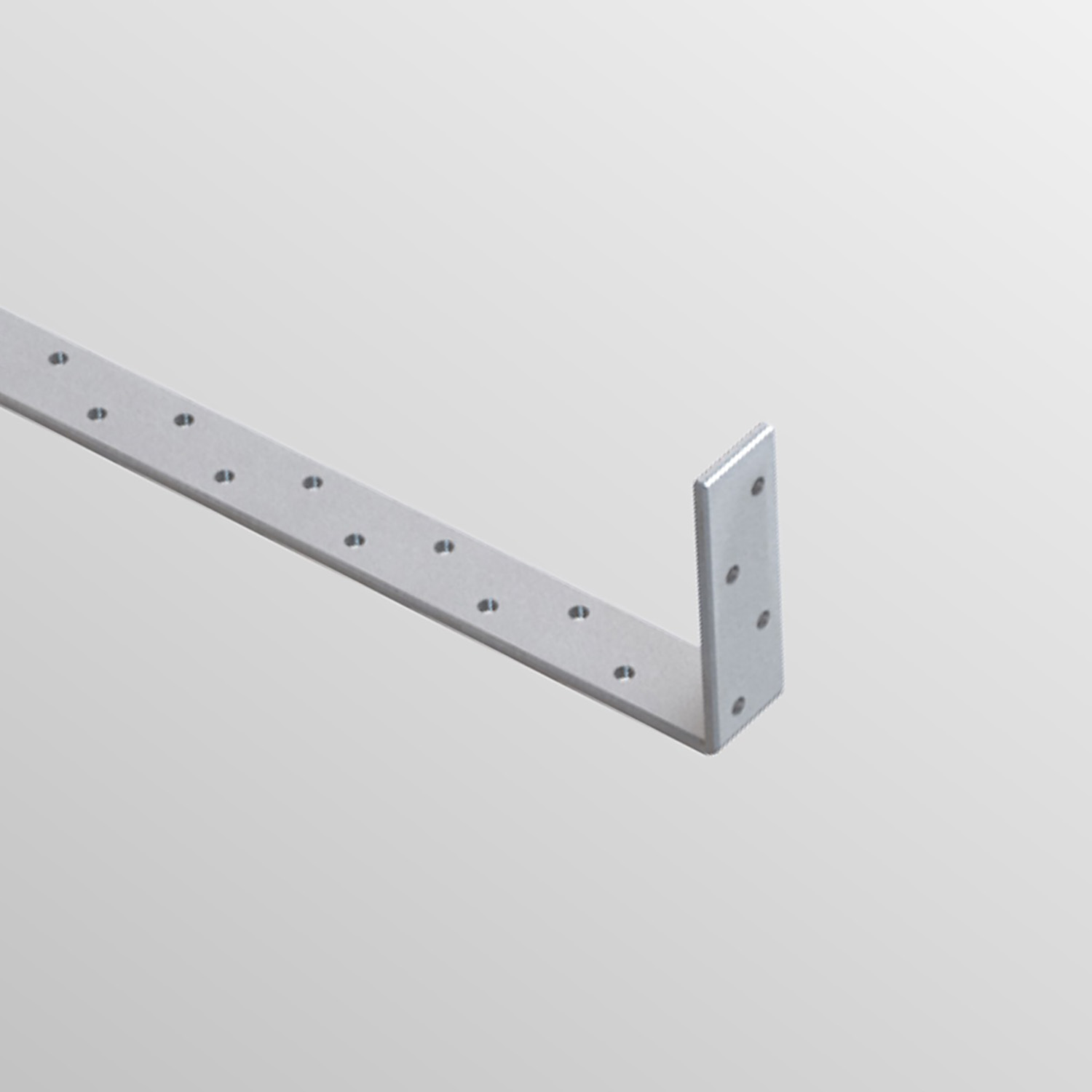

Bent galvanised heavy duty restraint straps (galvanised edge coated) are suitable for horizontal restraint applications such as tying timber roofs and floors into masonry walls. These multi-holed straps are supplied in 100mm increments with 6mm holes at 25mm offset centres.

Designed in accordance with The Building Regulations, BS5268 Part 3 and other building standards for vertical and horizontal restraint and tested to BS EN845-1.

Fixing – Restraint straps should be fixed using either 50mm long no. 12 woodscrews (using wall plugs in masonry for vertical restraint) or 75mm x 4.0mm diameter galvanised nails into timber. Stainless steel screws or nails must be used when fixing stainless steel straps.

Dimensions – Thickness 4mm, Width 28mm

Load Bearing Capacity – 8 kN.
