Description

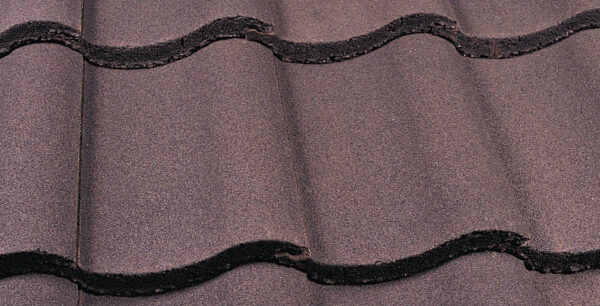

A single lap interlocking concrete tile with the classic clay pantile profile and a bullnosed leading edge design.

• Minimum Pitch: 30° Smooth (75mm headlap), 25° Smooth (100mm headlap), 30° Granular (75mm headlap)
• Maximum Pitch: 90°
• Size of Tile: 387mm x 230mm
• Minimum Headlap: 75mm
• Maximum gauge: 312mm
• Body Thickness: 30mm (nominal)
• Overall Depth: 71mm
• Cover width: 204mm (nominal)
• Hanging length: 370mm (nominal)
• Covering Capacity (net): 15.7 tiles/m2 at 75mm headlap, 17.1 tiles/m2 at 100mm headlap
• Weight of Tiling: 47kg/m2 (0.46 kN/m2) at 75mm headlap, 51kg/m2 (0.50 kN/m2) at 100mm headlap
• Battens Required: 3.2 lin.m/m2 at 75mm headlap, 3.5 lin.m/m2 at 100mm headlap
• Batten Size Recommended: 38mm x 25mm for rafters/supports not exceeding 450mm centres (fixed to BS 5534), 50mm x 25mm for rafters/supports not exceeding 600mm centres (fixed to BS 5534)
• Tile Nails: 38mm x 3.35mm
• Fixing Clips: Eaves, verge and tile clips
• Authority: BS EN 490
