Description

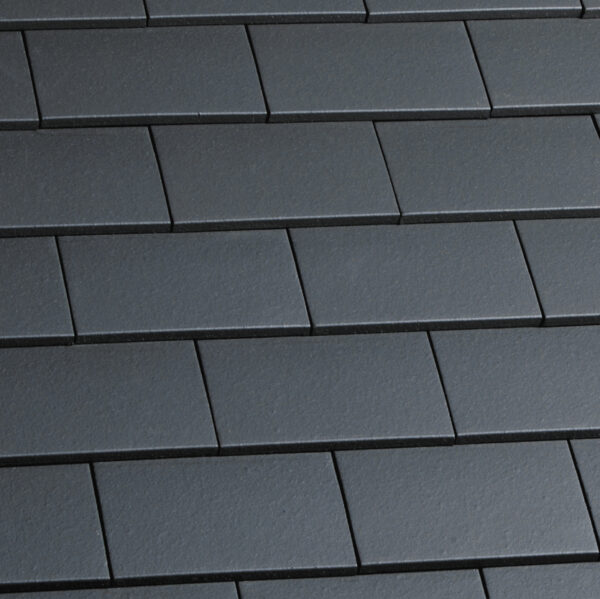

The name ‘Hawkins’ has been synonymous with quality
roofs for over 150 years. This heritage, combined with our
modern firing techniques, gives a unique colour range..

• Minimum Pitch: 30°
• Maximum Pitch: 90°
• Size of Tile: 265mm x 248 (tile and a half)
• Minimum Headlap: 65mm (roof), 35mm (vertical)
• Maximum gauge: 100mm (roof), 115mm (vertical)
• Tile Thickness: 11mm (nominal)
• Cover width: 165mm (nominal)
• Covering Capacity (net): 60 tiles/m2 at 100mm gauge (roof), 53 tiles/m2 at 115mm gauge (vertical)
• Weight of Tiling: 64kg/m2 (0.63 kN/m2) at 100mm gauge (roof), 56kg/m2 (0.55 kN/m2) at 115mm gauge (vertical)
• Battens Required: 10.0 lin.m/m2 at 100mm gauge (roof), 8.7 lin.m/m2 at 115mm gauge (vertical)
• Recommended Batten Size: 38mm x 25mm for rafters/supports not exceeding 600mm centres (fixed to BS 5534)
• Tile Nails: 38mm x 2.65mm
• Authority: BS EN 1304

Technical: Marley provides a comprehensive technical service and a range of online tools to ensure design performance and compliance to the latest British Standards and NHBC technical guidelines. These services include:

• Fixing specifications: marley.co.uk/tilefix
• NBS clauses: marley.co.uk/specrite
• CAD details: marley.co.uk/cad
• BIM models: marley.co.uk/bim

For more information on the recent update to the British Standard for Slating and Tiling (BS 5534) and how it might affect your project, please visit marley.co.uk/BS5534.
