Description

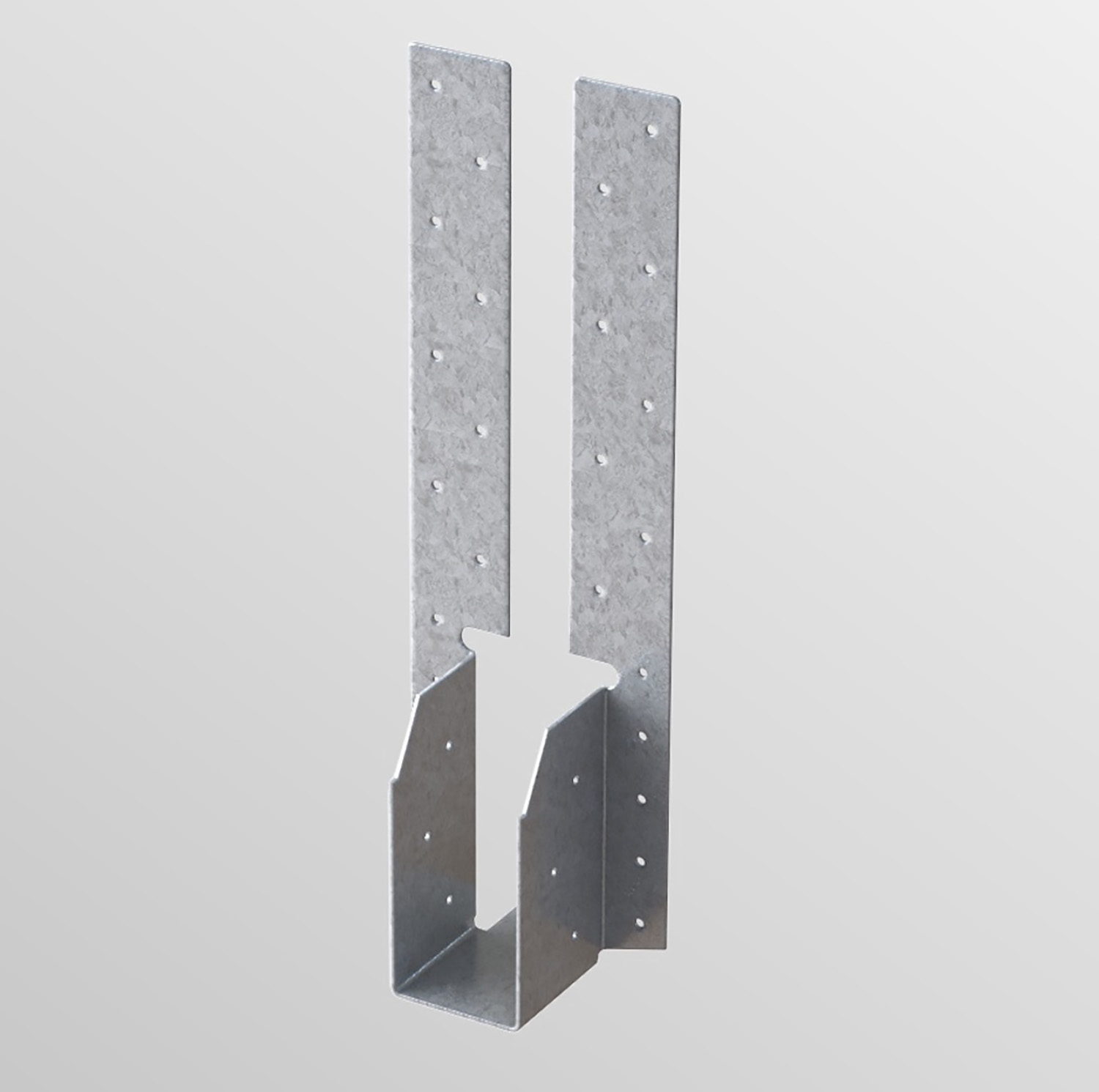

A medium duty hanger that is suitable for joist depths of up to 250mm.

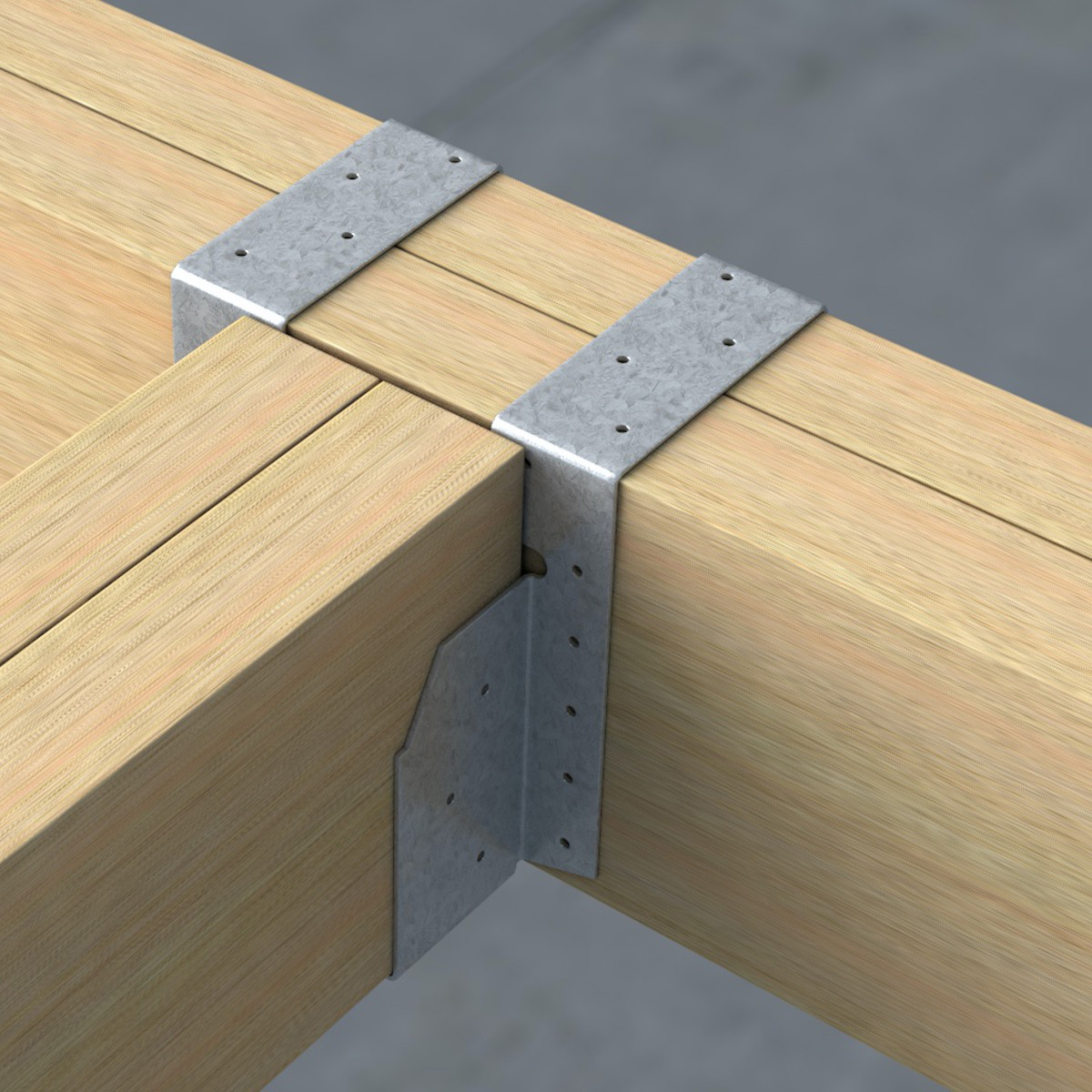

A medium duty joist hanger with 50mm wide legs, suitable for joist depths of up to 250mm. Design features a location tab on the base, to allow quick and accurate alignment of the hanger.

Material – Produced from 1.2mm thick galvanised steel to BS EN 10346:2009 DX51D + G275 as standard, or stainless steel available to order.

Fixing – Fix using either Type A or Type B fixings in all pre-punched holes:

• Type A, 30mm x 3.75mm Sheradised Square Twist Nails usually supplied loose for manual fixing.
• Type B, 35mm x 3.75mm Sheradised Square Twist Nails usually collated for nail gun fixing.
