Description

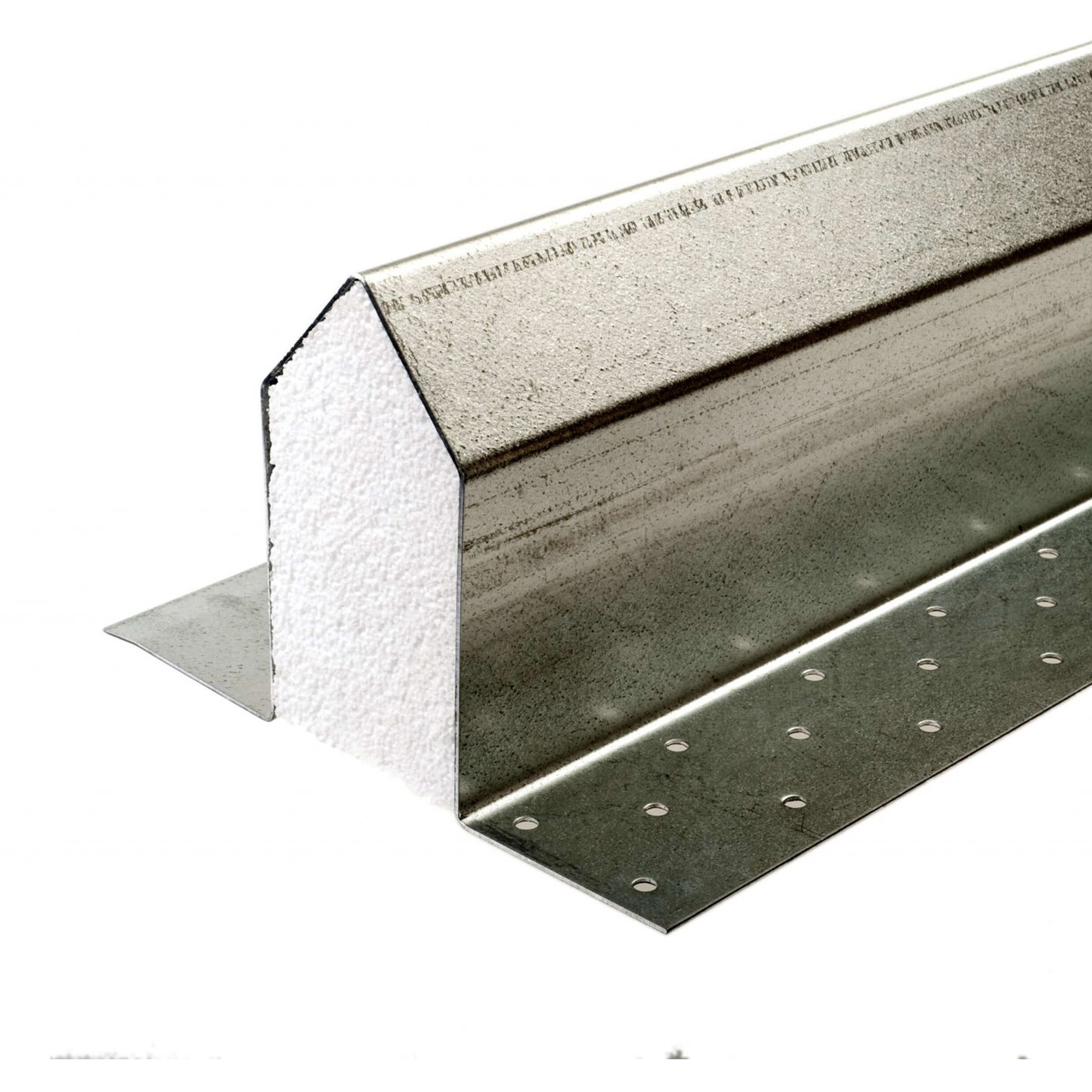

Steal cavity lintel – Cavity 50

• Outer Leaf: 100mm
• Cavity: 50-65mm
• Inner Leaf: 100-115mm
• Loading: Standard

Designed to support:

• Masonry loads
• Masonry loads and uniformly distributed timber floor loads

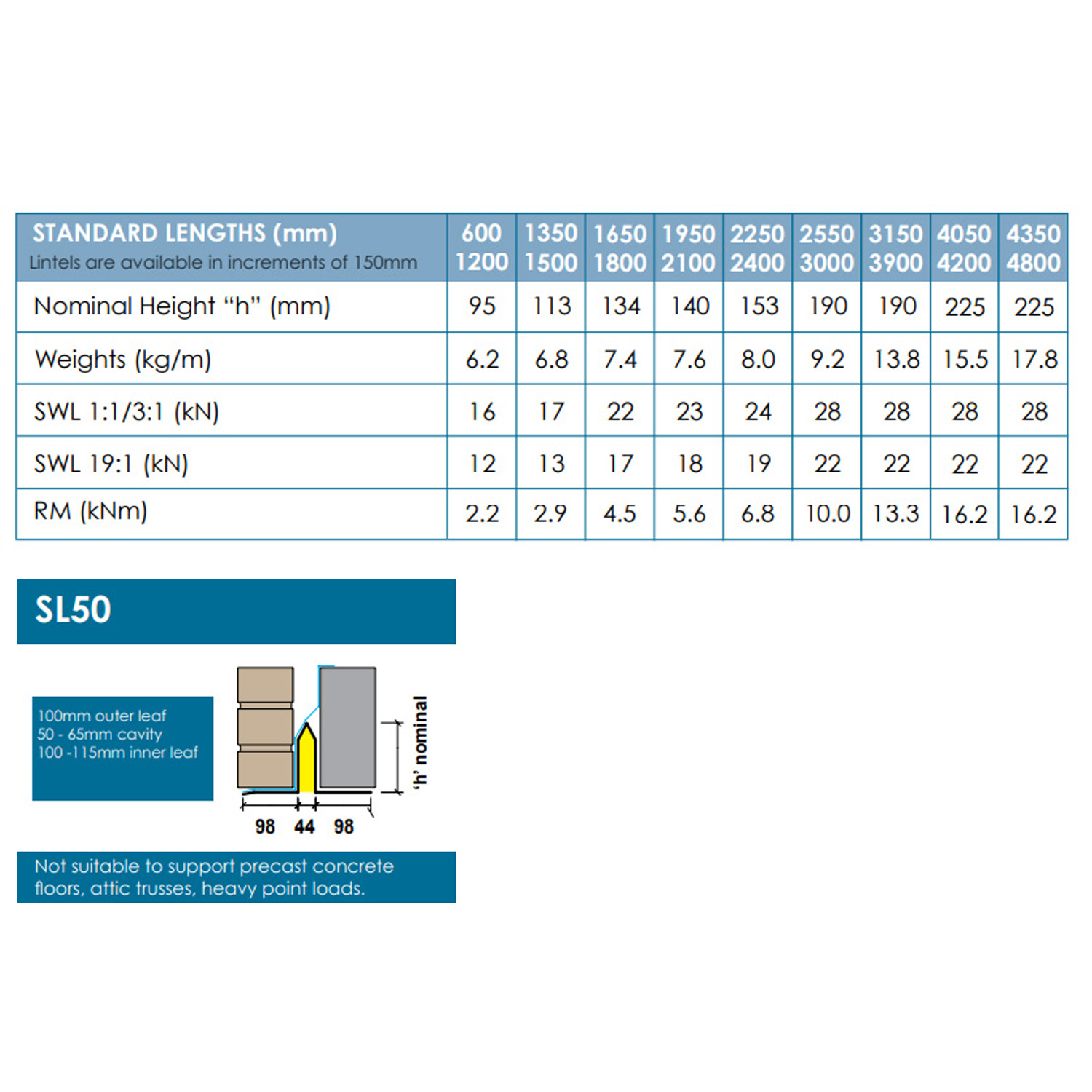

• ALWAYS CHECK LOADINGS AGAINST OUR LOAD-SPAN TABLE

Installation notes:

• Ensure that the inner leaf channel is filled with well cured masonry before work proceeds over. Masonry needs to be built tightly against the vertical section of the channel and a mortar joint added to the top of masonry, so that the
  loads from units above are spread evenly over the inner flange of the lintel
• Composite lintels should be adequately propped during construction, at maximum 1.2 metre centres. Props should not be removed until the mortar has cured

Advantages:

• Easy to install and suitable for a variety of applications
• Galvanised coating ensures durability/longevity
• Built-in plaster key: perforated base plate to inner flange
• Excellent thermal efficiency
• Built-in continuous insulation
• Can be manufactured with wide and short leaf detail
