Description

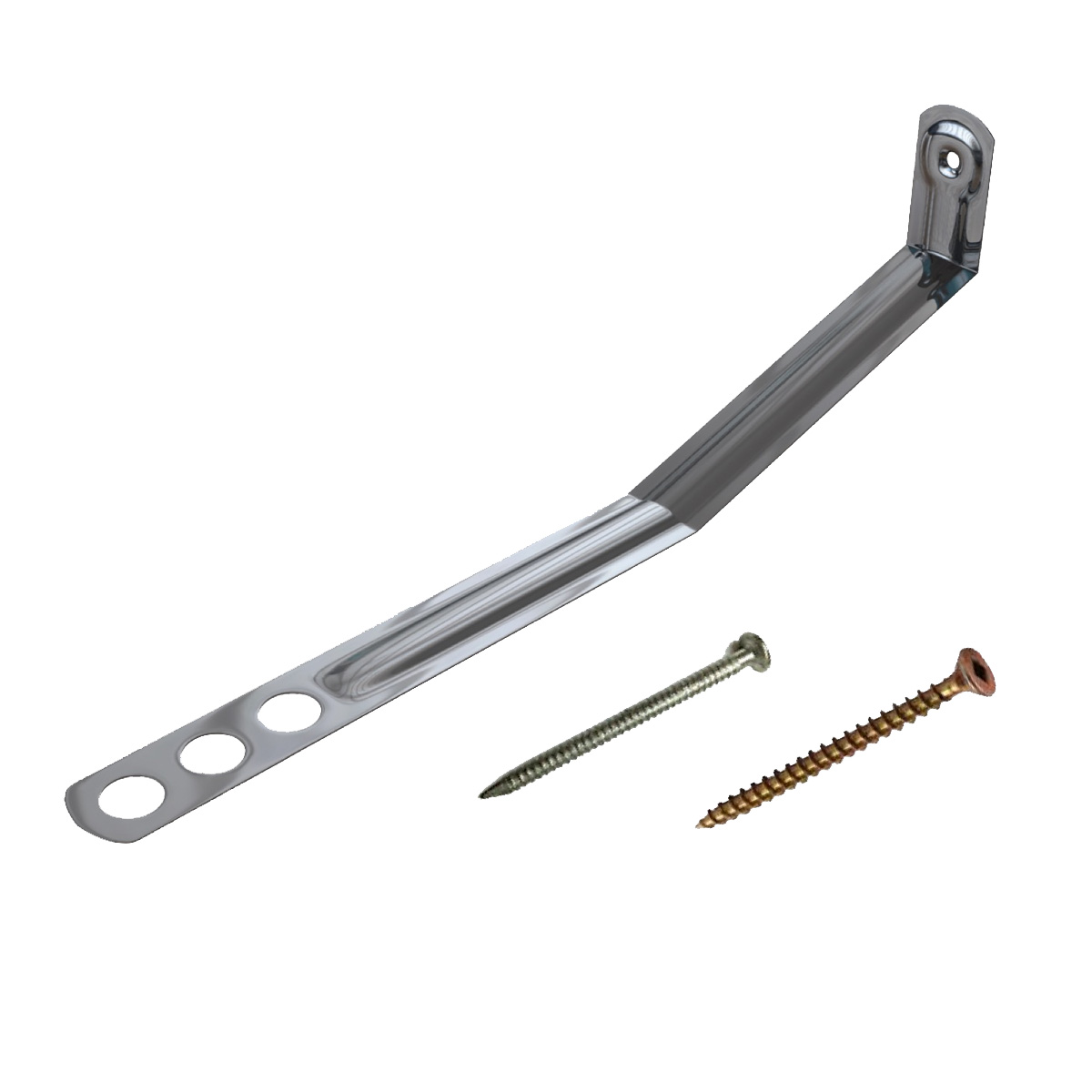

V61 timber frame ties, stainless steel masonry-timber tie for domestic and small commercial buildings up to four storeys high. Suitable for buildings with a maximum height of 15m and cavity widths from 50-100mm. Designed to accommodate vertical movement. (Type 6 Tie)

• Size: 150mm
• Cavity: 75mm

Supplied complete with 50mm x 3.35mm Stainless Steel Annular Ring Nails.

• Application – This type of timber frame wall tie is right for domestic and small commercial builds up to four storeys high. They are suitable for buildings with a maximum height of 15m and for flat sites where the basic wind speed is up to 25m/s and altitude is not greater than 150m above sea level
• Design – Masonry-timber tie for timber frame buildings that accommodates vertical movement
• Material – Manufactured from grade 304 stainless steel
• Behaviour in relation to fire – non combustible (as defined in the national Building Regulations)
• Durability – excellent corrosion resistance and a service life of not less than 60 years
• Thermal performance – In situations where thermal losses through ties need to be taken into account, the products will adequately resist thermal transmittance through a wall cavity
• Compliance – Tested as Type B (sound) and as Type 6 (strength) to BS EN 845-1
