Description

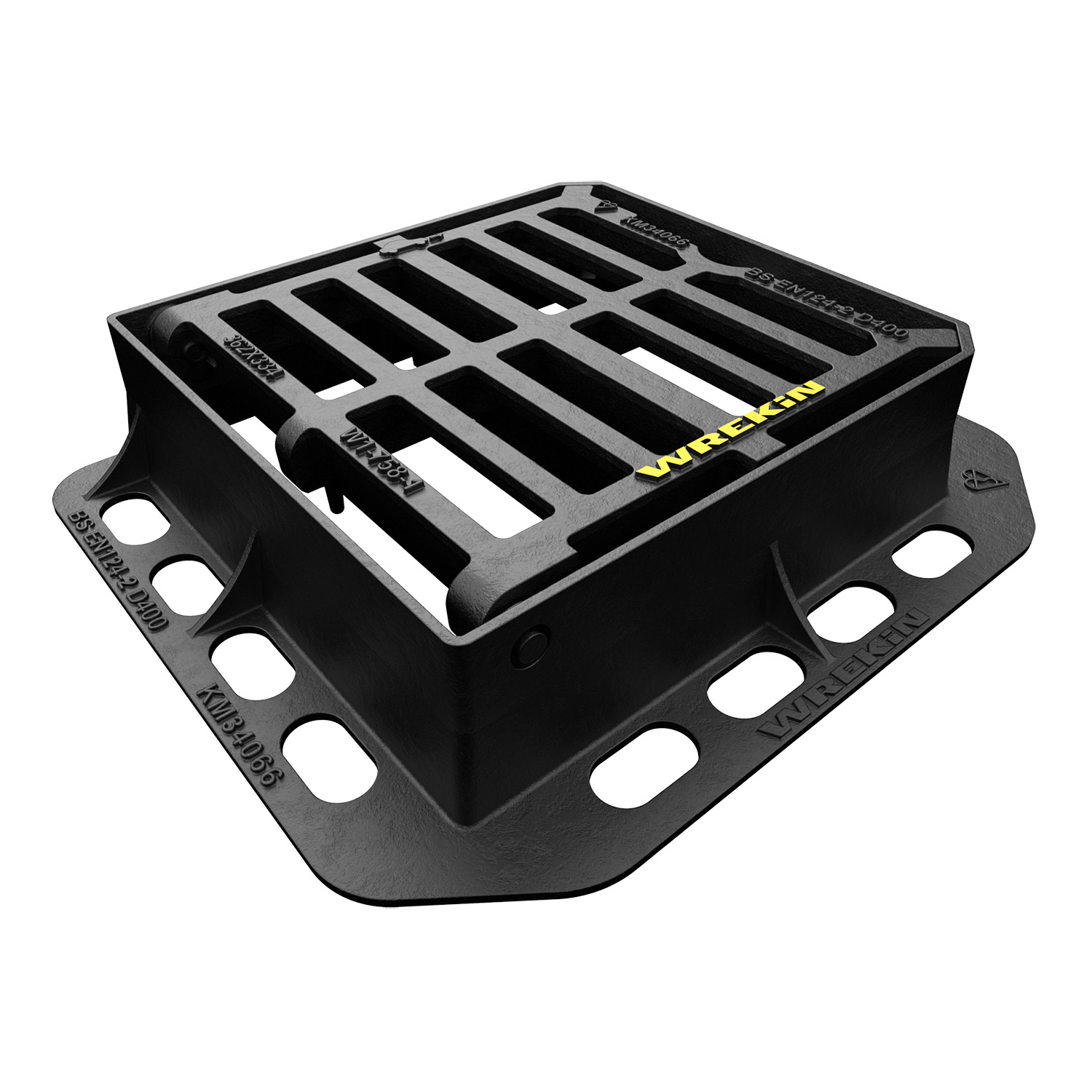

Tristar D400 3 flange gully grate 430mm x 370mm clear opening with 100mm frame depth

Captive hinges reduce theft risk whilst allowing easy lifting.

• Primary material: Ductile iron
• Range: Tristar
• Category: Gully grate
• Flanges: 3
• Standards: BS EN 124-2, CD 526 (formerly HA 102/17), CD 534 (formerly HA 104/09)
• BS EN 124 Class: D400
• BS EN 124 Group: 3,4
• Third party certified: Kitemark
• CD 526 hydraulic capacity: R
• Frame shape: Rectangular
• Manhole shape: Rectangular

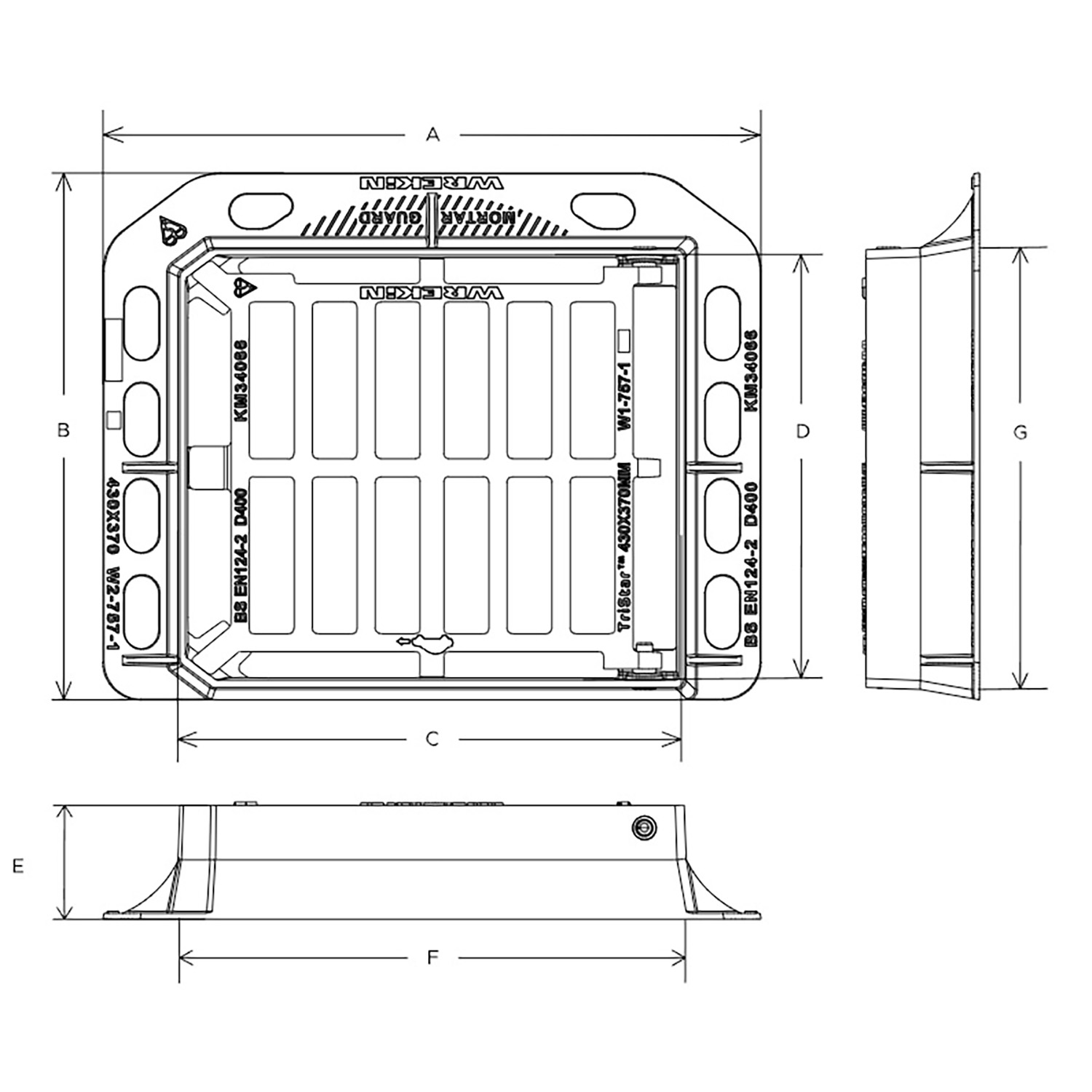

• Overall frame (A x B): 580 mm x 465 mm
• Clear opening (C x D): 430 mm x 370 mm
• Frame depth (E): 100mm
• Base opening (F x G): 455 mm x 390 mm
• Waterway area: 1,050cm²
