Description

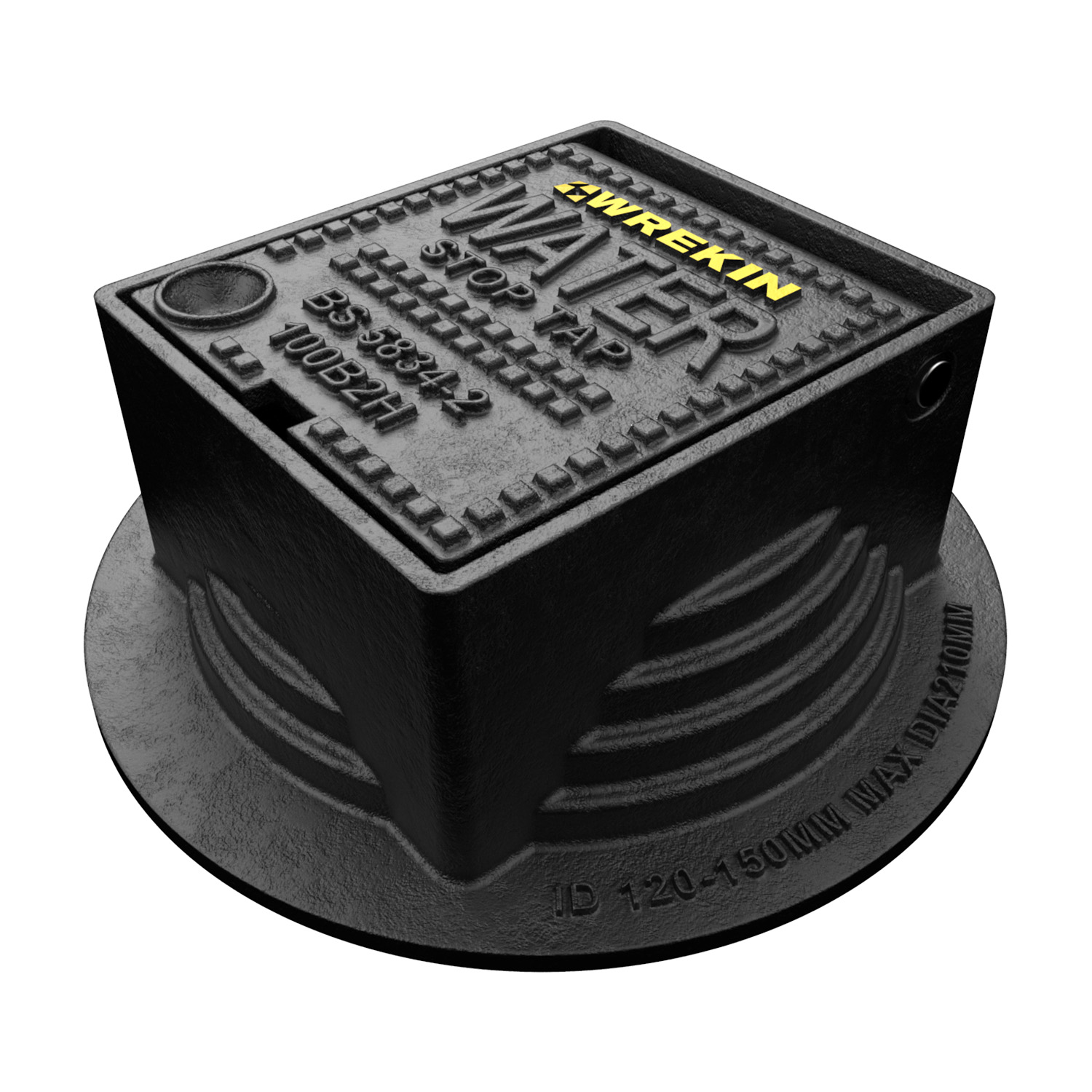

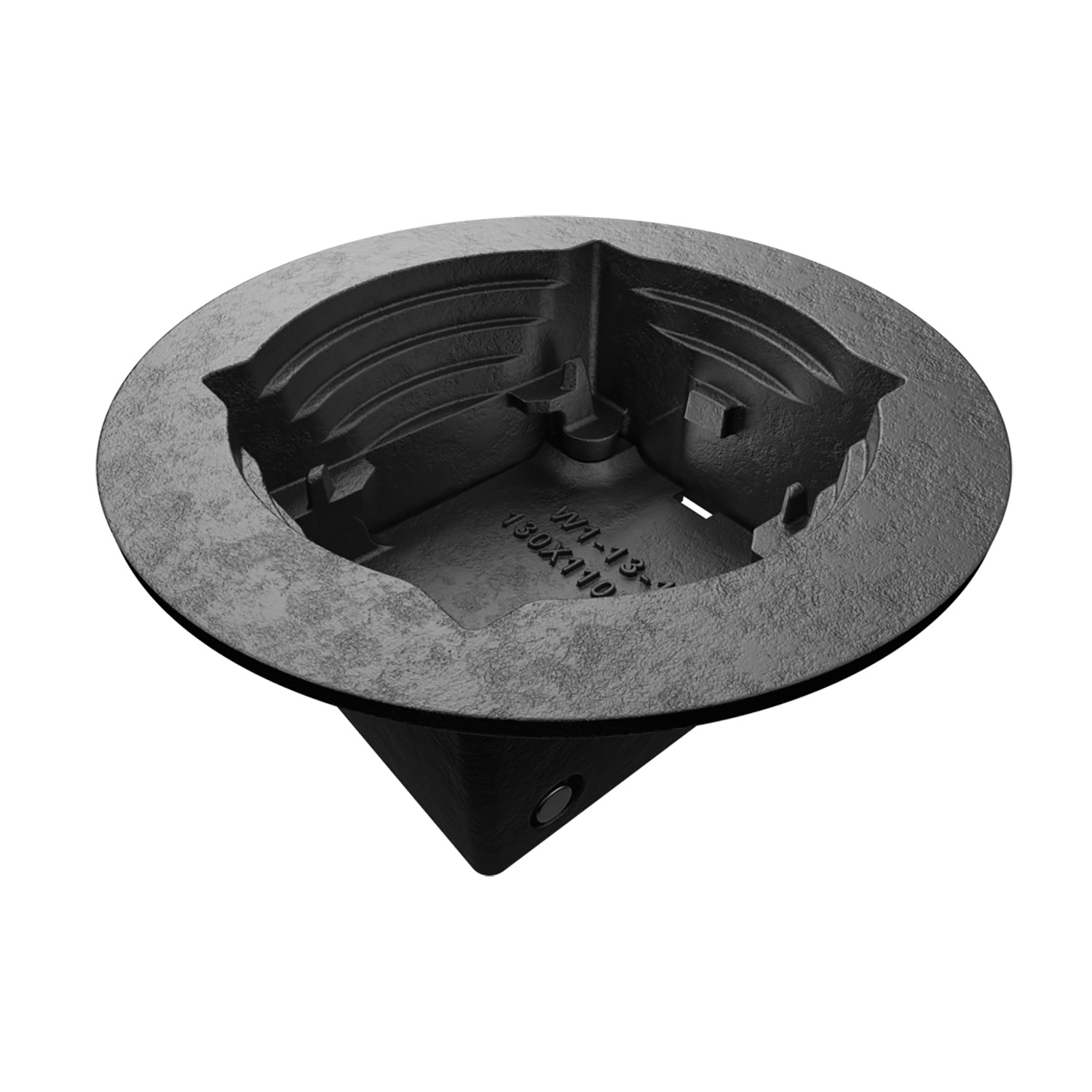

Tristar surface box with integrated sleeve 110mm x 130mm clear opening with 75mm frame depth.

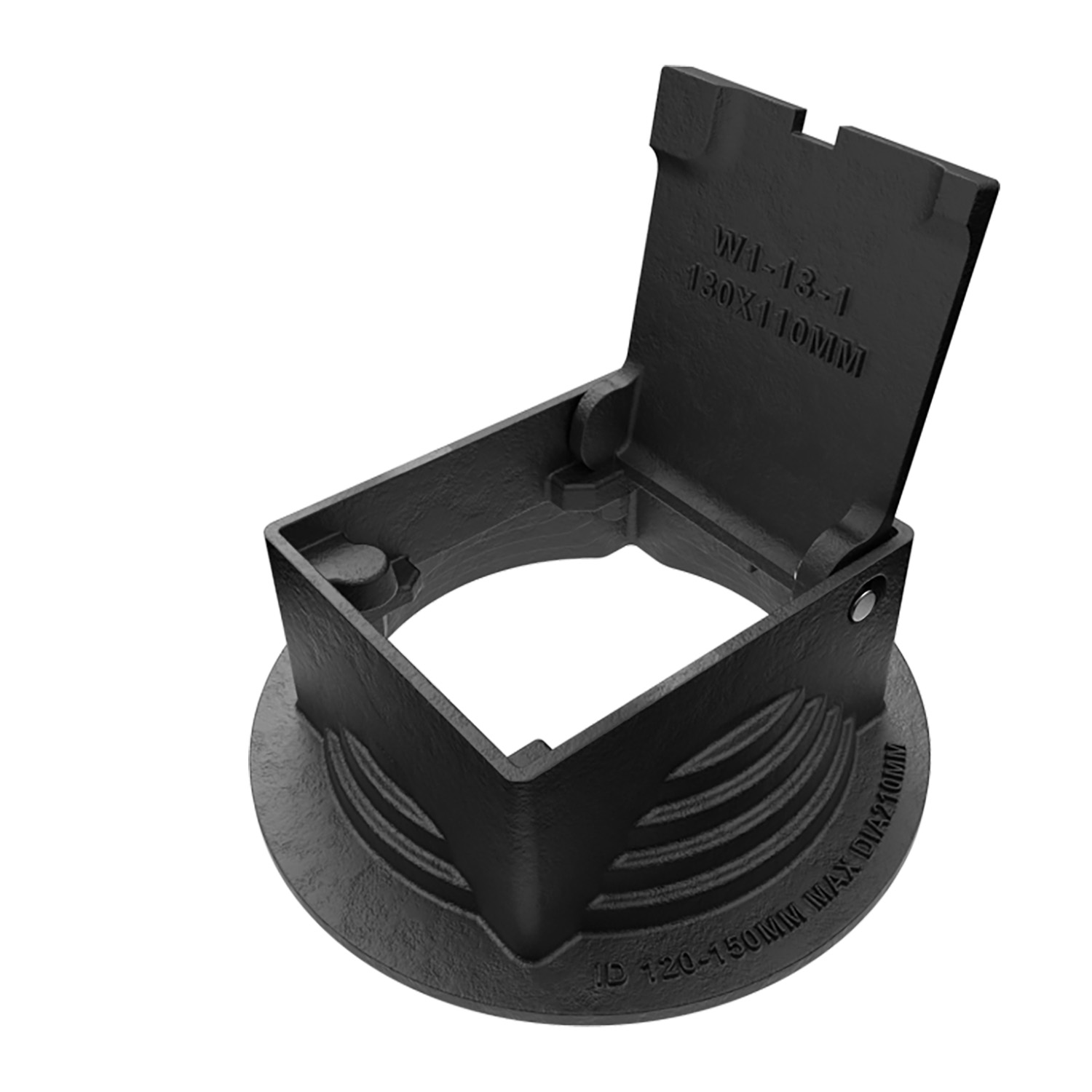

Captive hinges reduce theft risk whilst allowing easy lifting.

• Primary material: Ductile iron
• Range: Tristar
• Category: Surface box
• Flanges: 4
• Compatible pipe diameters: 120mm, 130mm, 140mm, 150mm
• Standards: BS5834
• BS 5834 Grade: B
• Frame shape: Circular
• Manhole shape: Square

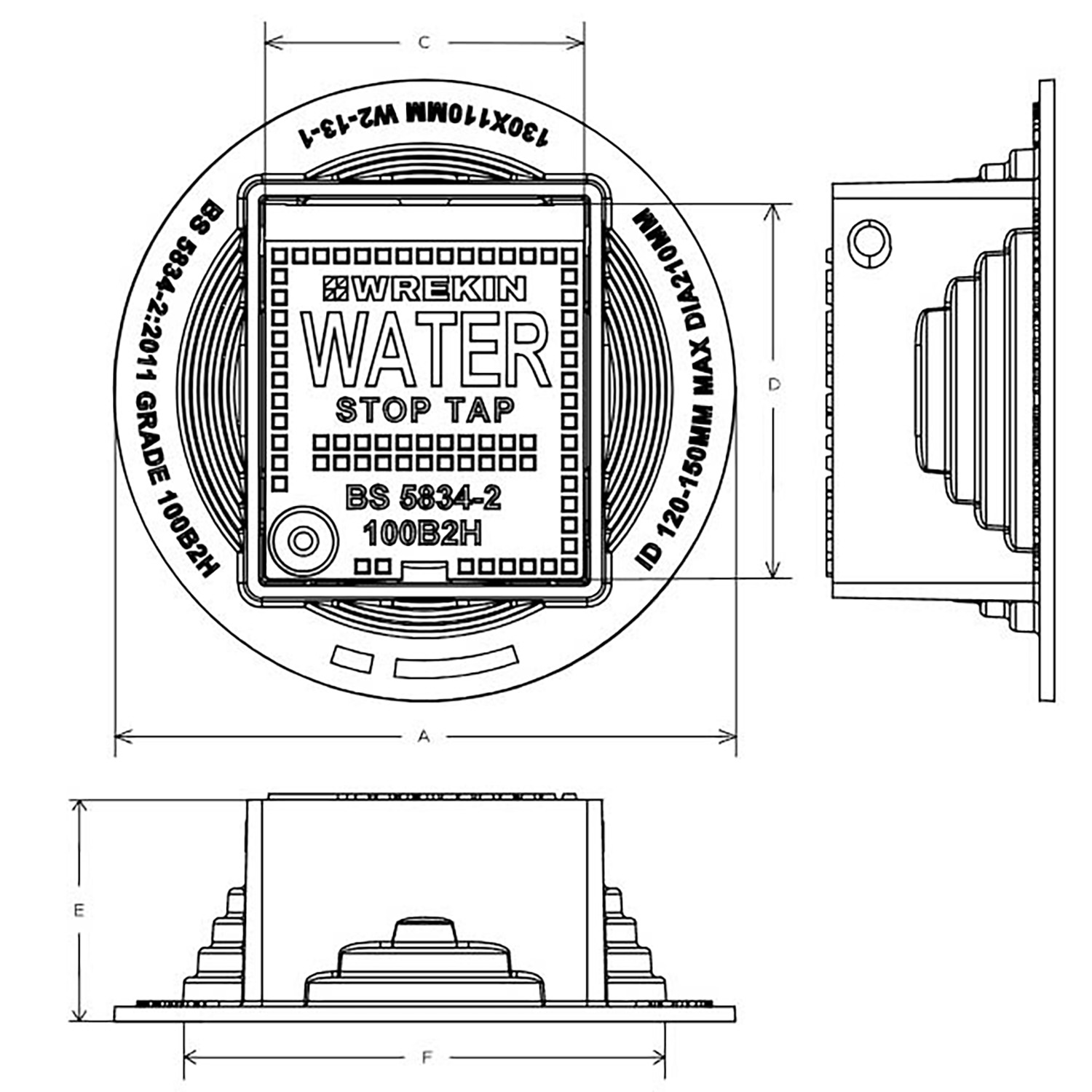

• Overall frame (A x B): 210 mm x
• Clear opening (C x D): 110 mm x 130 mm
• Frame depth (E): 75mm
• Base opening (F x G): Ø 155 mm
