Description

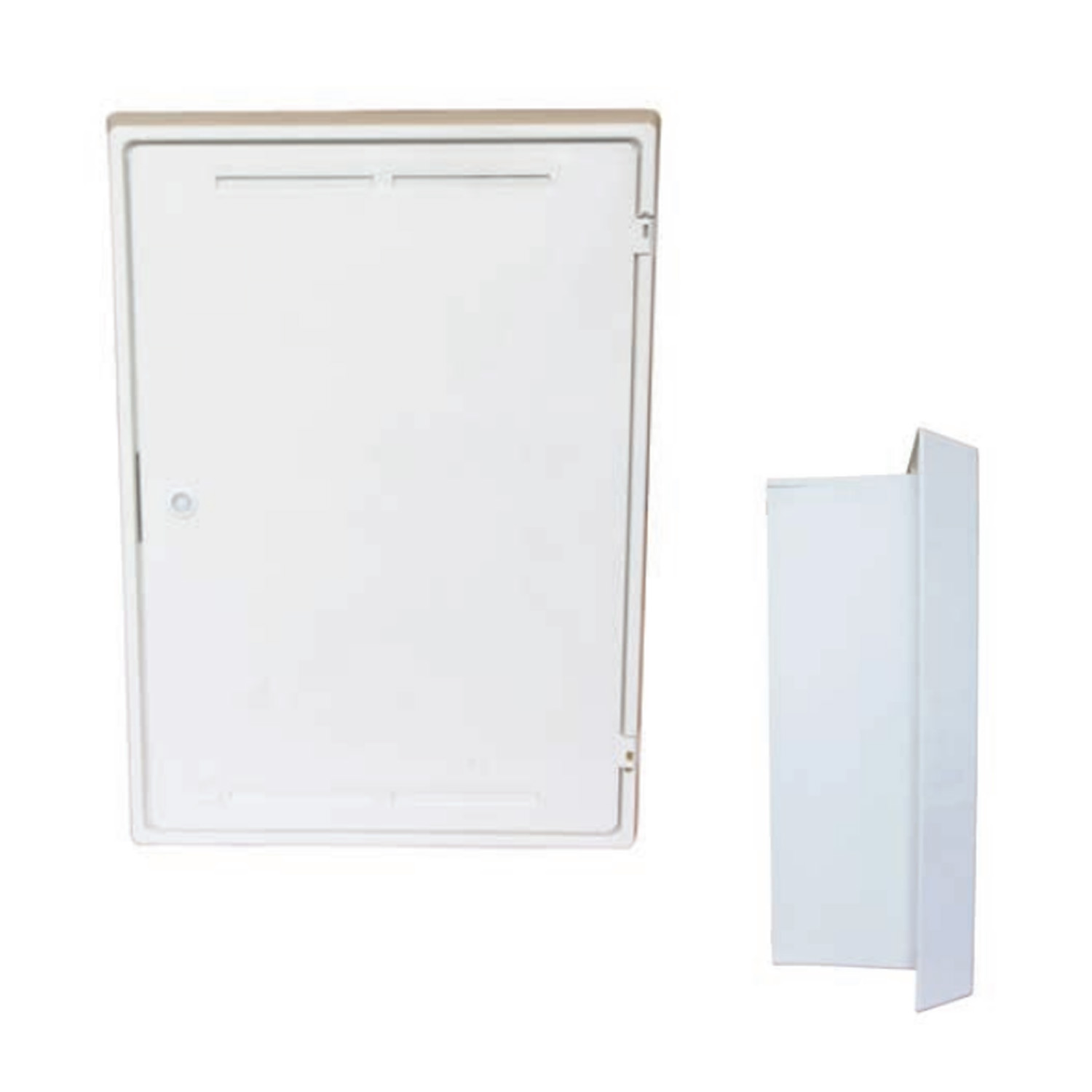

White box and is intended to be fitted into a wall and cavity. It is suitable for all domestic U6/G4 gas meters. This box is fully approved to National Grid gas specifications.

• Weather and sunlight resistant
• Degradation resistant
• Suitable for U6 and G4 metal cased gas meters
• Incorporates a fitted meter bracket
• Complete with: Meter box key, Spigot and screw, Installation instructions affixed to the interior of the meter box

Specification

• • Manufactured in white colour glass reinforced plastic (GRP)
  • Complies with BS 8499:2009 – Specification for domestic gas meter boxes and meter bracket – Formerly National Grid Specification PRS8
  • Fire retardant to – BS 476-7:1997 Class 2 – Fire tests on building materials and structures. Method of test to determine the classification of the surface spread of flame of products
  • Approved to National Grid gas specifications
  • When installed in accordance with BS 6400 the box interior provides a Zone 2 area to BS EN 60079-10 – Explosive atmospheres. Classification of areas
  • Overall size(mm): 434 wide x 600 high x 216 deep, 810 total width with door open, 385 front clearance required to allow door to open
  • Brickwork opening (mm): 365 wide x 527H x 155 deep
